HOME > Lineup > Unitrack Double Track

Lineup

Double Track

#20-004

248mm Concrete Tie Double Track Straight(2pcs)

0

62

124

186

248

310

20-004 複線直線線路248mm.png

20-012 複線直線線路186mm.png



#20-012

186mm Concrete Tie Double Track Straight(2pcs)

#20-023

124mm Concrete Tie Double Track Straight(2pcs)

#20-042

62mm Concrete Tie Double Track Straight(2pcs)



#20-043

Double Track Feeder (2pcs)

0

62

124

186

248

310

20-051 複線拡幅線路310ｍｍ左.png


#20-052

310mm Concrete Tie Double Track Widening Section Right(1pc)

#20-051

310mm Concrete Tie Double Track Widening Section Left(1pc)

#20-875

248mm Concrete Tie Straight Track (Station Expansion) (4pcs)

20-185_複線曲線線路R480-447mm　45度.png

20-183_複線曲線線路R315-282mm 45度.png

20-181_複線曲線線路Ｒ414-381ｍｍ 45度.png

#20-185

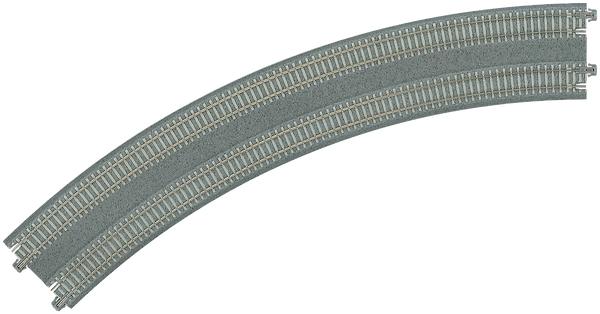

447mm/480mm Radius 45° Concrete Tie Double Track Superelevated Curve Track(2pcs)

#20-181

381mm/414mm Radius 45° Concrete Tie Double Track Superelevated Curve Track(2pcs)

#20-183

282mm/315mm Radius 45° Concrete Tie Double Track Superelevated Curve Track(2pcs)




#20-186

447mm/480mm Radius 22.5° Concrete Tie Double Track Easement Curve Track Right and Left

#20-182

381mm/414mm Radius 22.5° Concrete Tie Double Track Easement Curve Track

Right and Left

#20-184

282mm/315mm Radius 22.5° Concrete Tie Double Track Easement Curve Track

Right and Left

0

62

124

186

248

310



20-014 複線スラブ軌道直線線路186mm.png

20-006 複線スラブ軌道直線線路248mm.png



#20-006

248mm Concrete Slab Double Track Straight(2pcs)

#20-014

186mm Concrete Slab Double Track Straight(2pcs)

#20-025

124mm Concrete Slab Double Track Straight(2pcs)

#20-044

62mm Concrete Slab Double Track Straight(2pcs)

#20-049

62mm Concrete Slab Double Track Feeder [1 pcs]


20-187_複線スラブ軌道曲線線路R414-381mm 45度.png

#20-187

381mm/414mm Radius 45° Concrete Slab Double Track Superelevated Curve Track(2pcs)

#20-188

381mm/414mm Radius 22.5° Concrete Slab Double Track Easement Curve Track Right and Left

0

62

124

186

248

310




20-436 複線トラス鉄橋（ライトブル―）.png

20-455 複線プレートガーター鉄橋（ライトブルー）.png

#20-401

248mm Concrete Slab Double Track Straight Viaduct Track [2 pcs]

#20-411

186mm Concrete Slab Double Track Straight Viaduct Track [2 pcs]

#20-422

124mm Concrete Slab Double Track Straight Viaduct Track [2 pcs]

#20-436

248mm Double Track Truss Bridge, Light Blue

#20-439

248mm Double Track Truss Bridge, Light Green

#20-455

186mm Double Track Plate Girder Bridge, Lt Blue

#20-456

186mm Double Track Plate Girder Bridge, Lt Green

20-544 複線高架曲線線路R414-381ｍｍ 45度.png


#20-457

186mm Double Track Plate Girder Bridge, Gray

#20-544

381mm/414mm Radius 45º CS Double Track Superelevated Curve Track [2 pcs]

#20-545

381mm/414mm Radius 22.5º CS Double Track Easement Curve Track Right and Left
